MAXON TP-8102, TP-8402 Waterproof Radios with Scrambler, ANI, UHF 4W, VHF 5W, 512 Ch
Alternative Views:
Our Price:
$
230.00
Availability::
Usually Ships in 3 to 5 Business Days
Product Code:
TP8102-TP8402
Model
*
:
TP-8102 136-174 MHz
TP-8402 400-470 MHz
QTY:
Description
Technical Specs
Extended Information

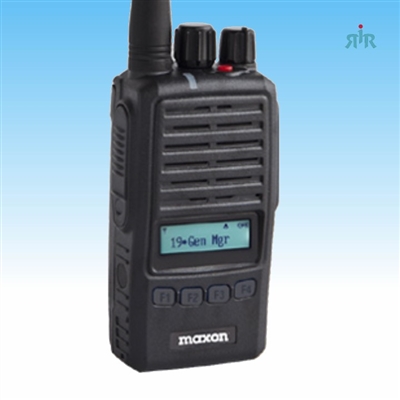

Maxon TP-8102, TP-8402 Waterproof radios are
full featured radio with 512 channels, display, multiple scan modes, scrambler and 2-tone decode. The radio comes complete with antenna, battery, charger, belt clip, and user manual. TP-8000 is IP-67 approved and meets MIL-STD 810F Standards. This radio will remain protected in 1 meter of water for up to 30 minutes. It can also be paired with optional accessories. See the accessories tab below for more details.
Models Available:
TP-8102 136-174 MHz
TP-8402 400-470 MHz
TP-8102 136-174 MHz
TP-8402 400-470 MHz
Operating Voltage 7.5 V DC
Operating Temperature -22° to 140° F (-30° to 60° C)
Frequency Stability ± 2.5 PPM
Dimensions (H/W/D) 4.37 x 2 x 1.25” (112 x 56 x 32 mm)
Channel Spacing 12.5/25 kHz per channel
PLL Stepping 2.5/6.25 kHz
Weight with Li-Ion Battery 9.1 oz. (258 g.) w/battery
Battery Life (hours) 15/19* hr
Battery Capacity 2200 mAh Li-Ion
Charge Time Estimate 2-3 hours
Package includes: Radio, antenna, battery, belt clip and rapid rate charger.
Additional accessories available and sold separately:
TA-2200LI – 2200 mAh Li-Ion Battery
TA-2600LI – 2600 mAh Li-Ion Battery
TA-841/842 – VHF(136-174 MHz), UHF(400-470 MHz), Antennas
TA-800L – Dual Slot Rapid Rate Desktop Charger
ACC-6006TP – 6+6 Unit Dual Slot Gang Charger
ACC-6110TP8 – 6 Unit Gang Charger
ACC-600TP8 – Single Slot Vehicular Charger
TA-836X – Standard Speaker Microphone
TA-850X – Heavy Duty Speaker Microphone TA-855X – Heavy Duty Speaker Microphone w Hi/Lo Vol Control TA-818X – Discreet Ear Speaker with Lapel Microphone
TA-819X – Ear-hook Speaker with Lapel Microphone
TA-820X – Behind the Head Frame w/boom mic in-line/PTT TA-890X – Dual Muff Headset & Cord (2pin)
TA-80LC – Leather Carrying Case w/Belt Loop and Swivel
TA-80NC – Nylon Carrying Case
ACC-8050E – Programming Cable
ACC-8050C – Cloning Cable
ACC-805/N – Programming Software
Features
5/2 Watt (VHF) – 4/2 Watt (UHF) Power Output
VHF (136-174 MHz) – UHF (400-470 MHz)
512 Channels – Dynamic Grouping
12.5/25 kHz Channel Spacing
2-Tone Decode, Stun/Kill OTA
2/5 Tone Selcall and DTMF ANI
Alpha-Numeric Display
CTCSS/DCS Enc/Dec
Voice Scrambler – Inversion
TOT/BCL/BCLO
Meets Military Standards 810F
IP-67 Approved
Embedded Bluetooth available on TP-8000BT Series
